WIZELOG - IoT Data Logger and Gateway

An IoT data logger records readings from sensors and meters, stores them and transmits them to a cloud server. WizeLog, Livwize's IoT data logger and gateway, reads RS-485 Modbus and 4 or 8 channels of 4–20 mA, logs at intervals from one minute, and sends the data over 4G LTE, Ethernet or Wi-Fi to dashboards or third-party servers.

Communicates securely to the cloud via (4G-LTE / Ethernet/ Wi-Fi) for real-time data monitoring. ‘WIZELOG’ IoT Data Logger is a multi-purpose device that acts as an IoT Data Logger and a Gateway. This plug-n-play device can be integrated with any Analog or Digital sensor network and Modbus interfacing to capture real-time data for remote and predictive analysis.

  • Connectivity:

    4G-LTE, Ethernet, Wi-Fi(opt), BLE(opt)

  • Interface(s):

    1 x RS485(2-wire), 1 x RS232(opt), 4/8 ch x 4-20mA (±1% FS)

  • Industrial Grade

    Made with Pride in India

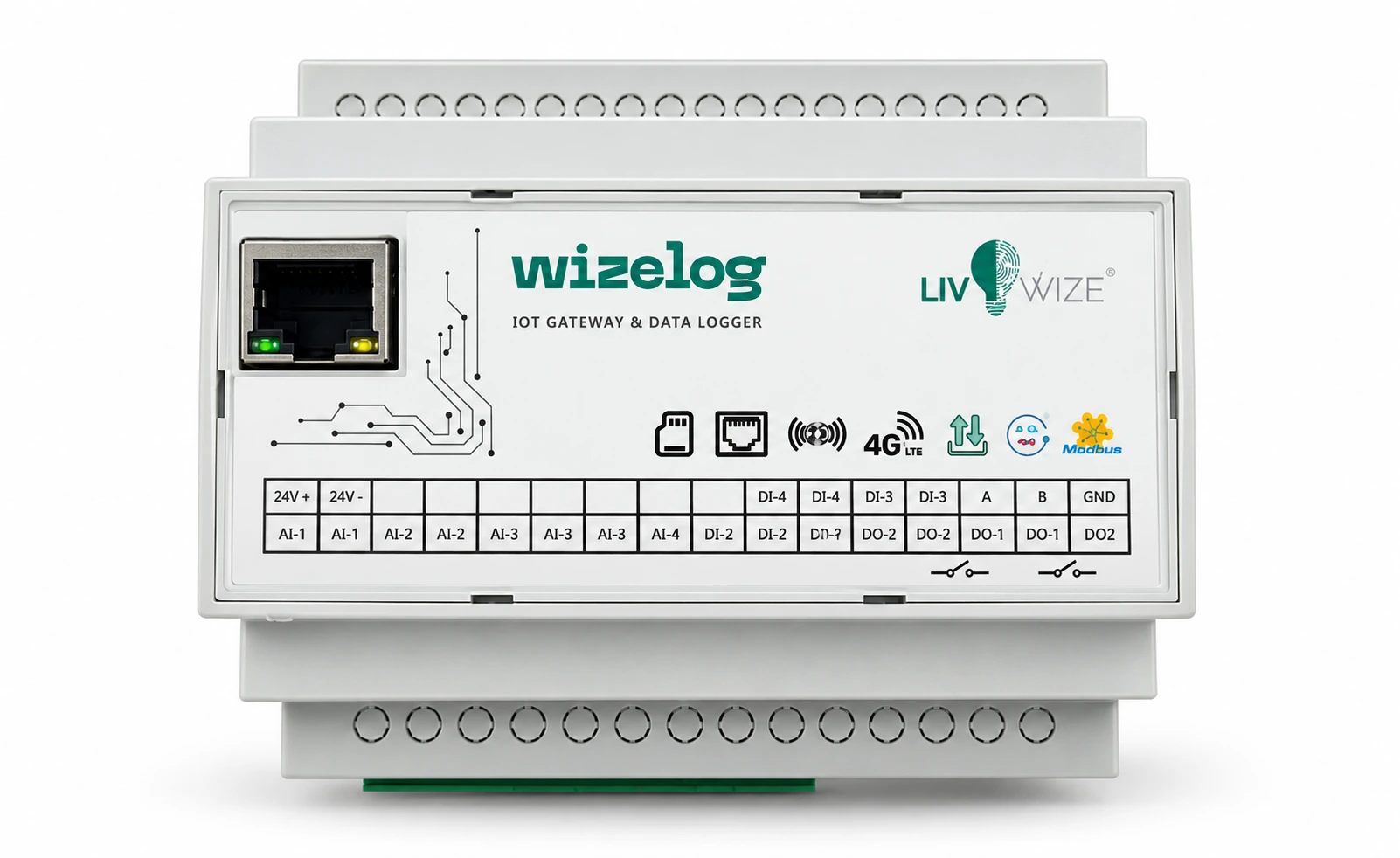

Wizelog IoT data logger and gateway

IoT Data Logger

How the WizeLog IoT data logger works

Introduction to IoT Data Loggers

WizeLog reads 1 × RS485 Modbus interface and 4 or 8 channels of 4–20 mA, timestamps the measurements and logs at intervals from 1 minute. A 4G LTE or Ethernet connection, with optional Wi-Fi, sends the records to a dashboard or the configured third-party server.

Inputs are mapped to their measurement names and units before logging. The logger stores the configured readings, transmits them over the selected network and makes the records available for live values, history and alerts in the dashboard.

Multi-Environment Fit
SCADA & Cloud Ready

Why Choose an IoT Data Logger?

Real-Time Monitoring:

Instantly monitor critical parameters like temperature, humidity, pressure, and more. Receive alerts in real-time for any deviations.

Data Storage & Analysis:

Seamlessly store large volumes of data on cloud servers and analyze trends over time to optimize your processes.

Remote Accessibility:

Access your data from anywhere in India or across the globe via secure online portals, ensuring you’re always connected to your operations. Scalability: Easily scale your data logging capabilities as your business grows, with the flexibility to add more sensors and expand monitoring areas.

  • Connectivity:

    4G-LTE, Ethernet, Wi-Fi(opt), BLE(opt)

    Interface(s):

    1 x RS485(2-wire), 1 x RS232(opt), 4/8 ch x 4-20mA (±1% FS)

    Data Logging:

    Min 1 min, Max: Custom

    Isolation:

    Modbus Up to 3KV | Ethernet Up to 2KV

    LED Indicators:

    1x Power, 1x Modbus , 1x Network, 1x Cloud

  • Wizelog Data Logger

    Dimensions:

    105 x 90 x 66 mm

  • Voltage:

    12-24V DC or 220-230V AC (opt)

    Protection:

    O/P: Surge protection, I/P: Over Voltage and Reverse Polarity Protection

    Operating Temperature:

    -20°C to +55°C (normal) | -40°C to +70°C (extended)

    Enclosure:

    DIN Rail, Wall/Table Top (opt)

    Certifications Compliance:

    Meet CE, FCC, RoHS standards

Key Benefits

Key Features

  • Remote Monitoring

    Real-Time Monitoring: Instantly monitor critical parameters like temperature, humidity, pressure, and more. Receive alerts in real-time for any deviations.

  • FTP Data Recording

    With or without Data Storage

  • Secured Cloud Transmission

    Communicates securely to the cloud via (4G-LTE / Ethernet/ Wi-Fi) for real-time data monitoring.

  • Configurable metering and transmission periods

    Remote Configuration and Calibration

  • Industrial Grade

    Made with Pride in India

  • Modbus RS-485 and Analog (4-20mA) Inputs

    ‘WIZELOG’ IoT Data Logger is a multi-purpose device that acts as an IoT Data Logger and a Gateway. This plug-n-play device can be integrated with any Analog or Digital sensor network and Modbus interfacing to capture real-time data for remote and predictive analysis.

Applications of IoT Data Loggers in India

Applications

Our IoT Data Loggers are designed to cater to a wide range of industries across India: Based on our range of IoT Gateways and Data Loggers, we offer a variety of custom monitoring solutions like:

  • Remote Temperature Monitoring

    Healthcare: Ensure the integrity of pharmaceuticals by monitoring storage conditions in real-time, and track patient vitals remotely.

  • Remote Pressure Monitoring

    Manufacturing: Monitor machinery performance, energy consumption, and environmental conditions in factories to ensure efficiency and reduce downtime.

  • Remote Power Monitoring

    Energy Monitoring for Solar Power Plants

  • Water Quality Monitoring

    Water Quality Monitoring Systems

  • Gas Monitoring

    Fuel Management for Generators

  • Air Quality Monitoring

    Air Quality Monitoring Systems Smart Cities: Support smart city initiatives by monitoring traffic, air quality, and public utilities to enhance urban living conditions.

  • Environment Monitoring

    Environment Monitoring Systems Agriculture: Track soil moisture levels, weather conditions, and crop health to maximize yield and minimize resource usage.

  • Solar PV Monitoring

    Remote Asset Monitoring

Target Markets

Industries Served

With the presence of different communication types we are perfect fit for the industries like:

Energy Solar Telecom Power Oil and Gas Environment Smart City Smart Manufacturing Commercial like Hotels/Residential Transportation

Where WizeLog is used

Select the interfaces and firmware for the measurement and destination. WizeLog brings these applications into the same basic pattern: collect the field value, preserve its timestamp and make the record available to the operator.

  • Agriculture: an agricultural IoT data logger can collect compatible soil and weather sensor readings for field monitoring.
  • Refrigeration and cold rooms: a compatible temperature-sensor configuration turns the logger into an IoT gateway for refrigeration monitoring.
  • Energy: collect meter readings for power and consumption dashboards.
  • Water: acquire compatible level, flow, pressure and water-quality measurements.
  • CPCB: integrate the selected analyser interfaces with the configured emission and effluent reporting workflow.

WizeLog technical specifications

The values below describe the WizeLog product range. Options and extended-temperature versions depend on the supplied model.

Published WizeLog specifications
Specification Published value
Connectivity 4G LTE and Ethernet; optional Wi-Fi and BLE
Interfaces 1 × RS485 (2-wire); optional RS232; 4/8 × 4–20 mA channels (±1% FS)
Logging interval Minimum 1 minute; maximum configurable
Isolation Modbus up to 3 kV; Ethernet up to 2 kV
Dimensions 105 × 90 × 66 mm
Supply 12–24 V DC; optional 220–230 V AC
Operating temperature −20°C to +55°C normal; −40°C to +70°C extended
Mounting DIN rail; optional wall/tabletop
Protection Surge, overvoltage and reverse-polarity protection

IoT data logging: intervals, storage and data formats

WizeLog supports logging intervals from 1 minute; the maximum interval is configurable. Select the interval from the process response time and the detail operators need. Logging every minute and uploading every minute are separate choices: the collection schedule, network availability and server configuration determine when a reading becomes visible.

Local logging helps preserve a record when the network is unavailable. Confirm the fitted storage capacity, retention and behaviour when storage fills for the chosen WizeLog variant. The published technical sheet does not state a universal storage size, so retention should be calculated from the channel count, interval and record size for the order.

Agree the data format with the receiving platform before commissioning. WizeLog supports FTP data recording and configured cloud transmission; MQTT/HTTP integration and CSV export should be confirmed for the selected firmware and destination. Include timestamps, measurement units, device identity and missing-data handling in the integration test.

Use the IoT sensors guide to compare measurement types and interfaces for the installation.

Frequently asked questions

What is an IoT data logger?

A device that reads sensors and meters, records the values with a timestamp, and sends them over a network to a cloud platform or server for monitoring and analysis.

Which interfaces does WizeLog support?

One RS-485 (2-wire) Modbus port, an optional RS-232 port and 4 or 8 channels of 4–20 mA (±1% FS), with 4G LTE and Ethernet as standard and Wi-Fi or BLE as options.

What are WizeLog's power and operating ranges?

It runs on 12–24 V DC, or 220–230 V AC as an option, and operates from −20 °C to +55 °C, or −40 °C to +70 °C in the extended version.

What is the difference between a data logger and an IoT gateway?

A data logger records measurements and their timestamps, while an IoT gateway connects field equipment to a network and translates protocols. WizeLog combines these functions so it can collect, store and forward instrument data.

Can WizeLog send data to our own server?

Yes. WizeLog can forward readings to third-party servers rather than only a Livwize dashboard. The integration plan defines the supported protocol, endpoint, authentication and data format.

Ready to Deploy

IoT based Data Logger

Wireless Data Loggers come in different shapes and sizes and with the advantage of our Data Logger Price, we are looking to help transform Indian Industries to implement IoT Data Logger and Gateway for IoT Device Monitoring Solutions.
